Time Delay Relays
  • 16 Time Ranges in Single Timer (0.1 sec. to 120 min)
  • User Sets Time Ranges
  • No Math - Just Flip Switches
  • Fine Tuning Knob for Precision Timing
  • Pin to Pin Interchangeable with Timers
  • In the Field - No Rewiring
  • AC or DC Operation
  • CMOS Digital Circuitry - 0.5% Repeatable Accuracy
!
Mfg: NTE Inc.

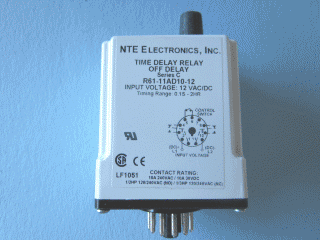

R61-11AD10-12

12VAC/DC - DPDT - NTE Time Delay Relay

NTE # R61-11AD10-12

Specifications:

  • Nominal Voltage: 12VAC/DC
  • Contact Arrangement:  DPDT
  • Nominal  Input Current: 167mW
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC:
Mfg: NTE Inc.

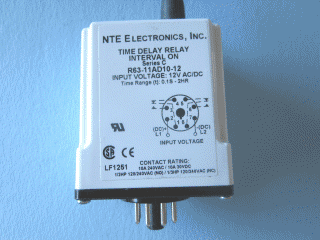

R63-11AD10-12

12VAC DC- SPDT - NTE Time Delay Relay

NTE # R63-11AD10-12

Specifications:

  • Nominal Voltage: 12VAC/DC
  • Contact Arrangement:  DPDT
  • Nominal  Input Current: 167mW
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC:
Mfg: NTE

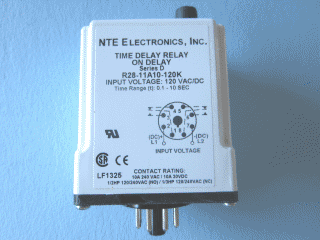

R28-11A10-120K

120VAC - DPDT - NTE Time Delay Relay

NTE # R28-11A10-120K

Specifications:

  • Nominal Voltage: 120VAC
  • Contact Arrangement:  DPDT
  • Nominal Input Current: 20mA
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC
  • 8-Pin Octal Base
  • 3-Timing Ranges
  • +- 0.1% Repeatability
Mfg: NTE

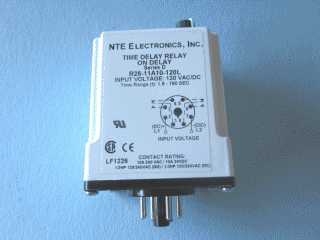

R28-11A10-120L

120VAC - DPDT - NTE Time Delay Relay

NTE # R28-11A10-120L

Specifications:

  • Nominal Voltage: 120VAC
  • Contact Arrangement:  DPDT
  • Nominal Input Current: 20mA
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC
  • 8-Pin Octal Base
  • 3-Timing Ranges
  • +- 0.1% Repeatability
Mfg: NTE
R30-11A10-120L

120VAC - DPDT - NTE Time Delay Relay

NTE # R30-11A10-120L

Specifications:

  • Nominal Voltage: 120VAC
  • Contact Arrangement:  DPDT
  • Nominal Input Current: 20mA
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC
  • 8-Pin Octal Base
  • 3-Timing Ranges
  • +- 0.1% Repeatability
Mfg: NTE

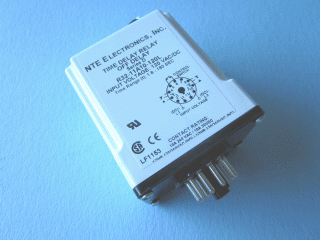

R32-11A10-120L

120VAC - DPDT - NTE Time Delay Relay

NTE # R32-11A10-120L

Specifications:

  • Nominal Voltage: 120VAC
  • Contact Arrangement:  DPDT
  • Nominal Input Current: 20mA
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC
  • 8-Pin Octal Base
  • 3-Timing Ranges
  • +- 0.1% Repeatability
Mfg: ECG Philips
RLY4075K

120VAC - DPDT Philips ECG Time Delay Relay

ECG # RLY4075K

  • NTE Replacement: R30-11A10-120K

Specifications:

  • Nominal Voltage: 120VAC
  • Contact Arrangement:  DPDT
  • Nominal Input Current: 20mA
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC
  • 8-Pin Octal Base
  • 3-Timing Ranges
  • +- 0.1% Repeatability
Mfg: ECG Philips

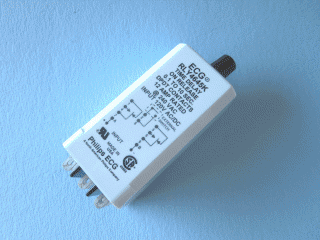

RLY4645K

120VAC - DPDT Philips ECG Time Delay Relay

ECG # RLY4645K

  • NTE Replacement: R36-11A12-120K

Specifications:

  • Nominal Voltage: 120VAC
  • Contact Arrangement:  DPDT
  • Nominal Input Current: 20mA
  • Maximum Contact Current: 12-Amp @ 28VDC or 120VAC
  • 8-Pin Octal Base
  • 2-Timing Ranges
  • +- 0.1% Repeatability
Mfg: ECG Philips

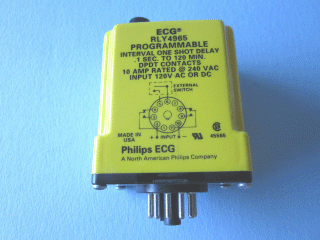

RLY4965

120VAC - DPDT Philips ECG Time Delay Relay

ECG # RLY4965

  • NTE Replacement: R62-11AD10-120

Specifications:

  • Nominal Voltage: 12VAC/DC
  • Contact Arrangement:  DPDT
  • Nominal  Input Current: 17mA
  • Maximum Contact Current: 10-Amp @ 28VDC or 120VAC:
Mfg: Square D

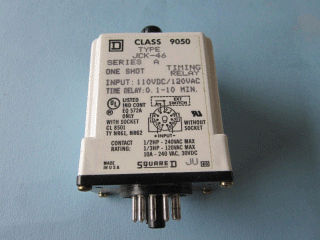

JCK-46

110VDC/120VAC - DPDT - Time Relay

Square D # JCK-46

Specifications:

  • DPDT
  • 10Amp @ 110 VDC/120VAC
  • Time Delay
