IDC-Dual Row Connectors

Specifications for Philmore Connectors:

  • Contact Resistance:  30 Megohm max. at DC 100mA
  • Insulator;  1000 Megohm min. at DC 500 Volt
  • Current Rating;  1 Amp Dielectric With Standing
  • Voltage:  AC 500 Volt for 1 Minute
  • Operating Temperature;   -55C - + 105C
  • Contact;  Phosphor Bronze
  • Housing;  PBT & 30% Glass Fiber (UL 94V-0
!
Mfg: Philmore
70-4216

70-4216 - 16 Position IDC Dual Row

Philmore # 70-4216

Mfg: Philmore

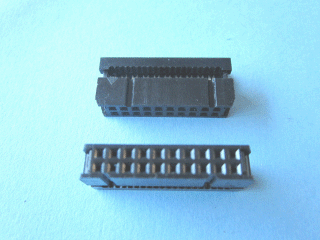

70-4220

70-4220 - 20 Position IDC Dual Row

Philmore # 70-4220

  • Length: 1.188"
  • Thickness: .233"
  • Height: .422"
Mfg: Philmore

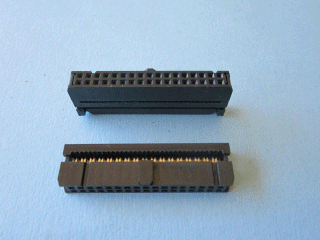

70-4234

70-4234 - 34 Position IDC Dual Row

Philmore # 70-4234
